Automatic sterilization cage loading machine
Automatic sterilization cage loading machine
Automatic sterilization cage loading machine Automatic sterilization cage loading machine Automatic sterilization cage loading machine Automatic sterilization cage loading machine Automatic sterilization cage loading machine
Details

 Video

Description:

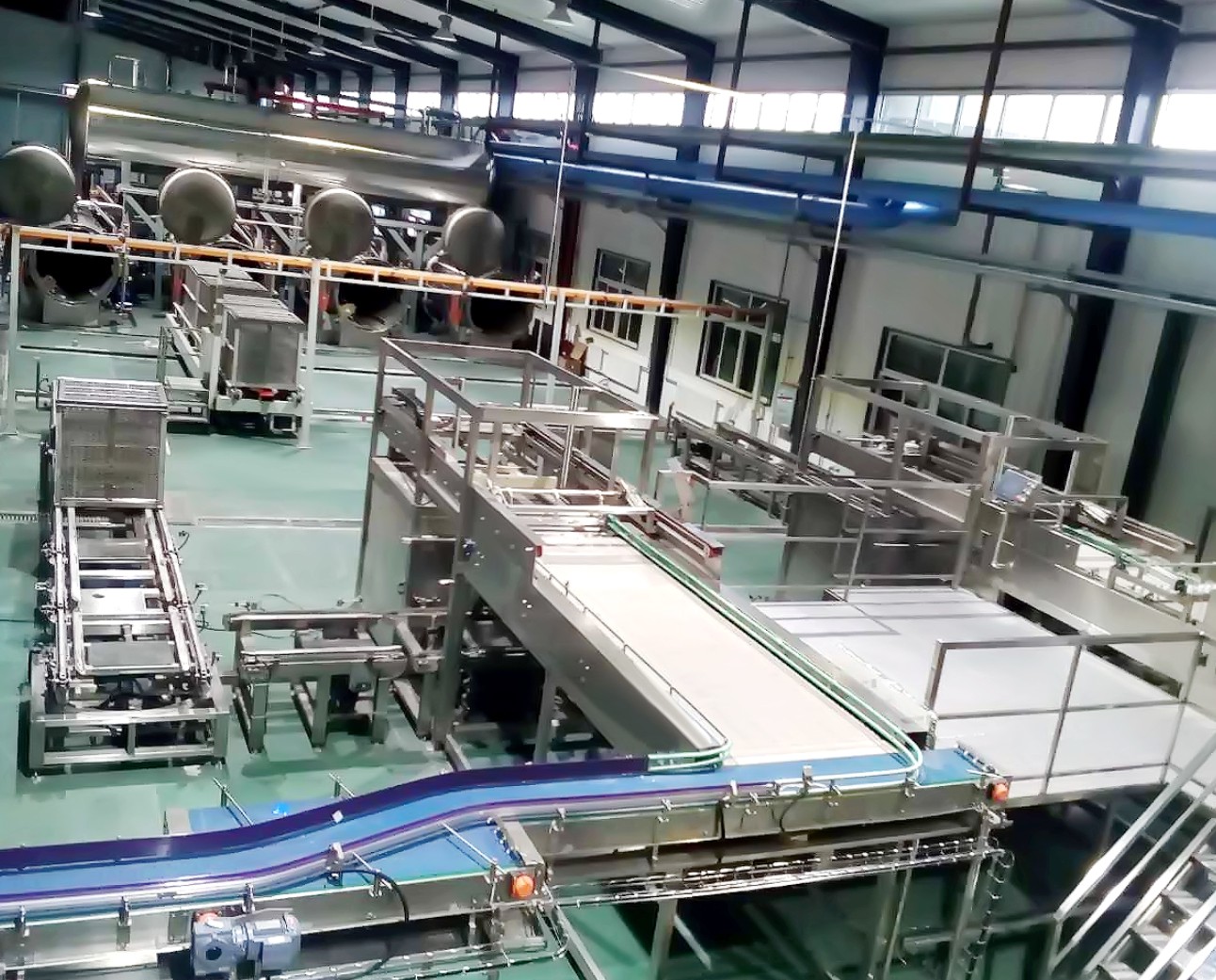

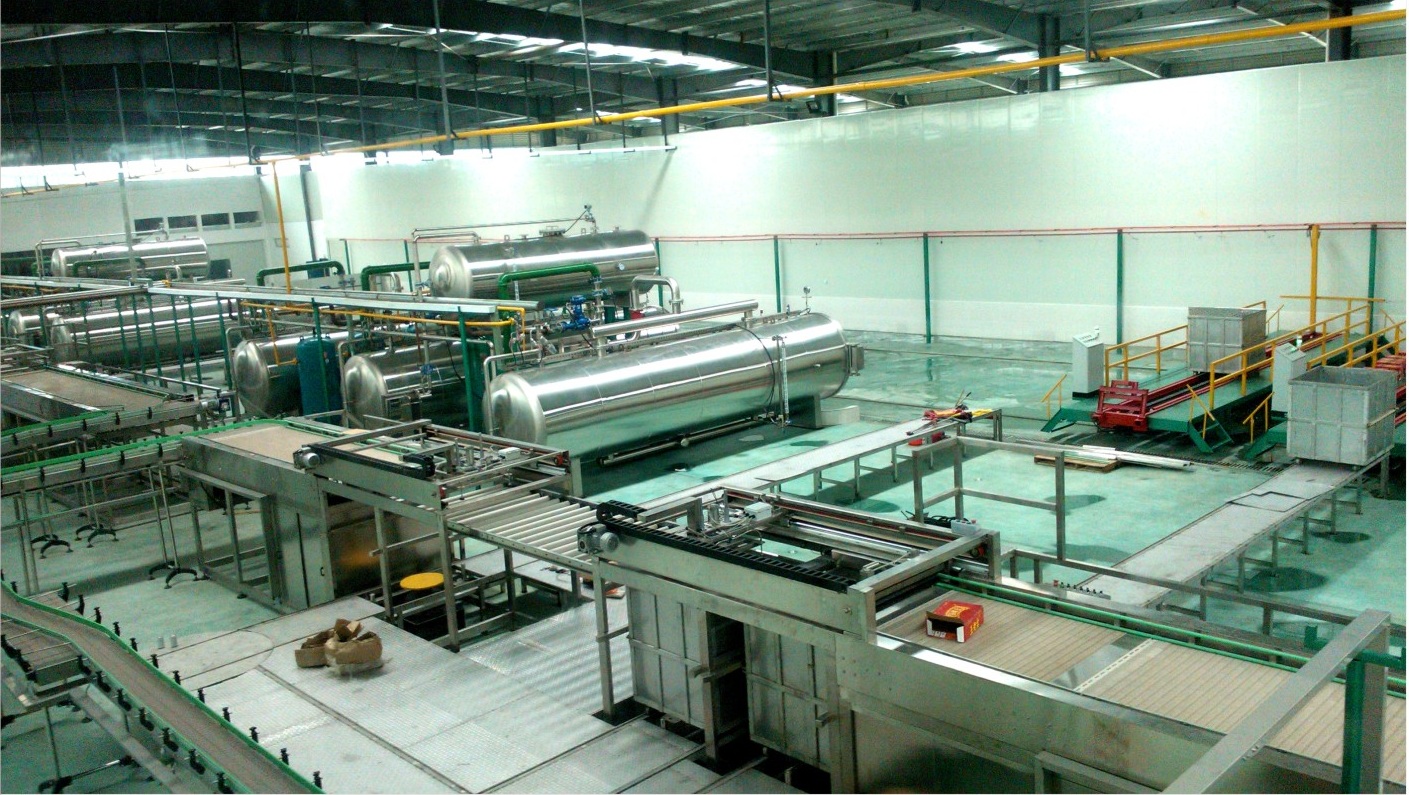

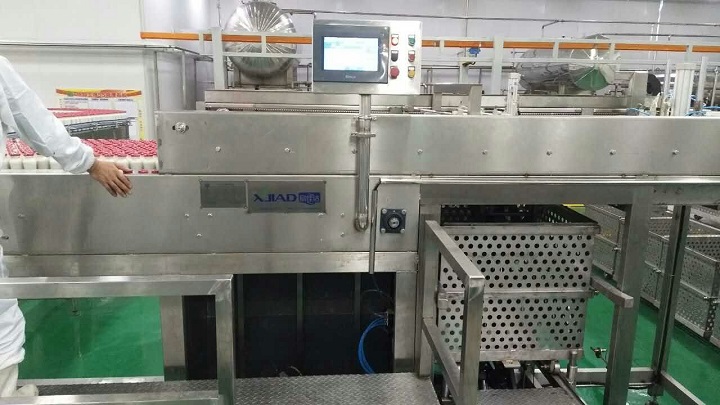

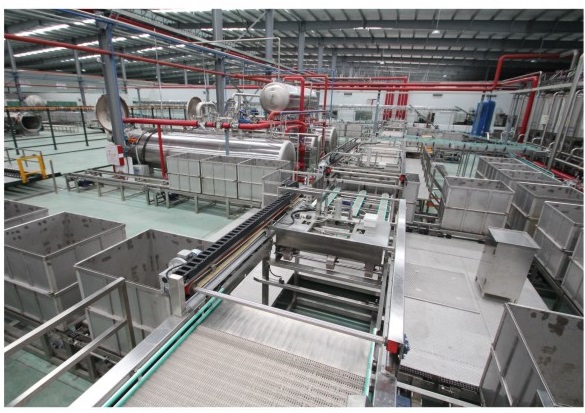

  This machine mainly applies to every kind of canned drink or tins. It will load the cans automatically prior to the second sterilization. First the machine loads the bulked and packed full cans into the sterilization cage layer by layer upwards, through the leveling block of chain net can-receiving and can-sorting device. Then transmit the cans to the sterilizer to be sterilized through the transmission system of electric trolley cycle track. In the whole loading process, the interlayer board comes out and goes up automatically, the sorting , loading, dropping and stopping are all automatic. The machine taking the place of manually loading method, can save manpower and increase the production effect greatly.

Function configuration:
1/Automatically entering the cans and loading functions.
2/Automatically spitting and adding in mechanism of interlayer board.
3/Automatically buffering and arranging the leveling block.
4/Automatically layered and arranging device.
5/Loading&compressor device.
6/Automatically and exactly locating device of interlayer board.
7/Hydraulic pressure lifting system of loading mainframe.
8/Locating device of sterilization cage.
9/Automatically loading device of discharging leveling blocks.
10/Automatic stop alarm when cans are full.
11/Using famous brand products,such as MITSUBISHI PLC and SICK photoelectric switch,benefiting from their steady equipment ans superior function.

Technical data:
Production capacity : 500~1000cpm
Applicable cans : Various tinplate cans, aluminum can, glass bottle, plastic bottle, etc.
Applicable can Diameter : D50~153mm
Applicable can height : H50~270mm
Motor power : 7kw
Size : L7000*W1500*H1600mm
Weight : 3500kg
5.Motor power: 7KW.
6.Size(length×width×height): 4500×1500×1600mm.
7. About weight: 3000kg.
